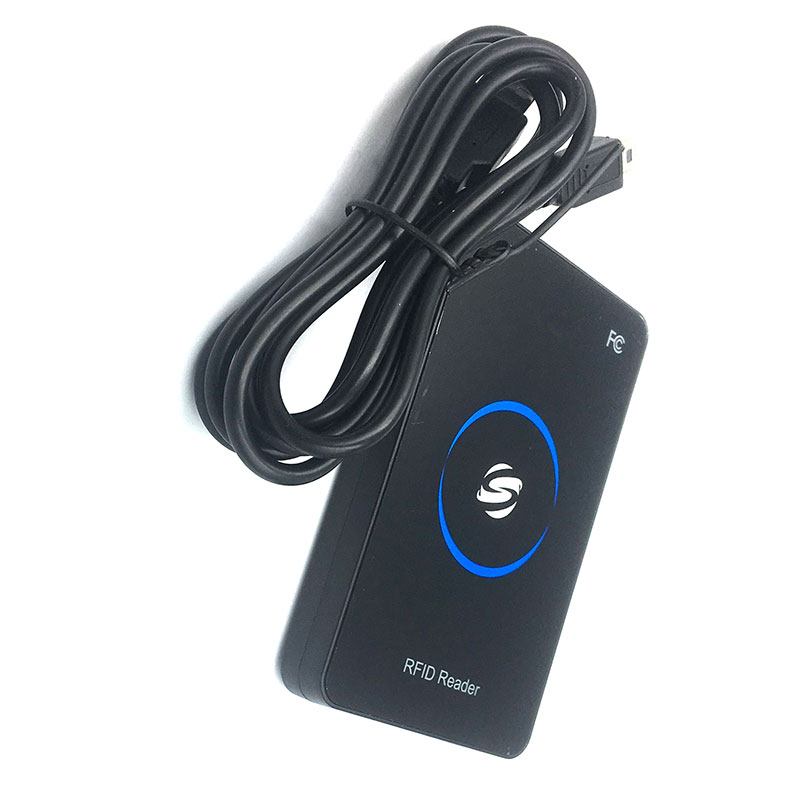

13.56Mhz Electronic Contactless IC Card Reader Usb Interface RFID Card Reader

This card reader is 13.56Mhz electronic contactless ic card reader usb interface RFID card reader.we are wholesale ic card reader manufacturer and supplier in China,we have been manufacturing ic card readers for many years.our electronic ic reader have high quality,good price and we can provide you good service.we look forward to becoming your long-term partner in China.

Send Inquiry

Product Description

13.56Mhz Electronic Contactless IC Card Reader Usb Interface RFID Card Reader

1.Product Introduction

Contactless ic card readeris a high performance13.56Mhz RFIDsmart card reader without driver,reader distance up to80mm,it’s not only simple aspect,but also stable and reliable data.widely used for RFID radio frequency identification system and project,such as automated parking management system,personal identification,access controller,production access control,etc

2.Product Description

Item	Parameters
Frequency	13.56mhz
Support cards	(S50/S70/compatible S50,S70 etc.14443A protocols cards)
Output format	10 digit dec(Defoult output format) (Allow user to customize the output format)
Size	105mm×65mm×15mm
Colour	Black
Interface	USB
Power Supply	DC5V
Operating Distance	0mm-100mm(related to the card or the environment)
Service Temperature	-10℃ ~ +70℃
Store Temperature	-20℃ ~ +80℃
Working humidity	<90%
Read time	<200ms
Read interval	＜0.5S
Cable length	1400mm
Material of reader	ABS
Operating System	Win XP\Win CE\Win 7\Win 10\LIUNX\Vista\Android
Indicators	Double Color LED (Red & Green) and Buzzer (“Red” means standby,“Green” means reader success)

3.Method of installation and use

a.Connect with computer through USB interface directly.when the buzzer sounded,reader into the self-inspection.and the same time,LED turn into red means standby.

b.Openthe output of computer software,such asNotepad\a word document or Excel sheets.

c.The mouse in Notepad or WORD document clicking.

d.Puttag on the top of reader,the software will outputa data(card number)of thetag. when reading the tag, LED light change from red to green.

4.Precautions

Do not install the reader on the magnetic objects and metal objects,they will seriously affect the RF signal.If after reading, the tag is still in the induction zone,the RF reader will not send data and without any hints.
