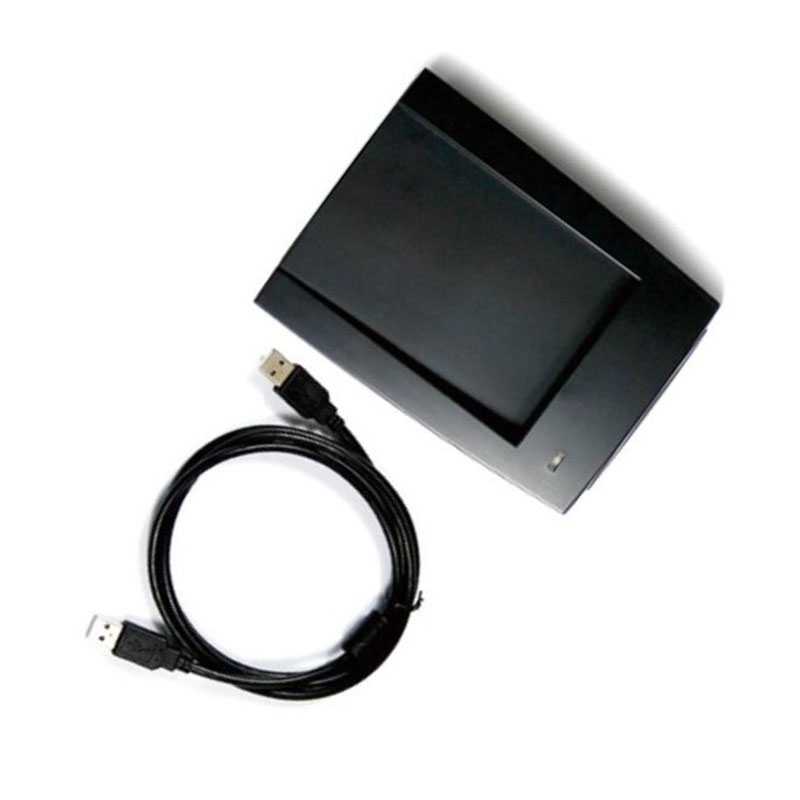

Desktop 125Khz Contactless Smart Proximity Card USB RFID Reader
1.Product Introduction
Low frequency card reader is a high performance125Khz RFIDsmart cardDesktopreader without driver,reader distance up to80mm,it’s not only simple aspect,but also stable and reliable data.widely used for rfid radio frequency identification system and project,such as automated parking management system,personal identification,access controller,production access control,etc.
2.Product Description
Item |
Parameters |
Frequency |
125khz |
Support cards |
Em4100,TK4100,SMC4001 and compatible card |
Output format |
10 digit dec(Defoult output format) (Allow user to customize the output format) |
Size |
110mm×80mm×26mm |
Colour |
Black |
Interface |
USB |
Power Supply |
DC5V |
Operating Distance |
0mm-100mm(related to the card or the environment) |
Service Temperature |
-10℃ ~ +70℃ |
Store Temperature |
-20℃ ~ +80℃ |
Working humidity |
<90% |
Read time |
<200ms |
Read interval |
<0.5S |
Cable length |
1400mm |
Material of reader |
ABS |
Operating System |
Win XP\Win CE\Win 7\Win 10\LIUNX\Vista\Android |
Indicators |
Double Color LED (Red & Green) and Buzzer (“Red” means standby,“Green” means reader success) |
3.Method of installation and use
a.Connect with computer through USB interface directly.when the buzzer sounded,reader into the self-inspection.and the same time,LED turn into red means standby.
b.Openthe output of computer software,such asNotepad\a word document or Excel sheets.
c.The mouse in Notepad or WORD document clicking.
d.Puttag on the top of reader,the software will outputa data(card number)of thetag. when reading the tag, LED light change from red to green.
4.Precautions
Do not install the reader on the magnetic objects and metal objects,they will seriously affect the RF signal.If after reading, the tag is still in the induction zone,the RF reader will not send data and without any hints.
