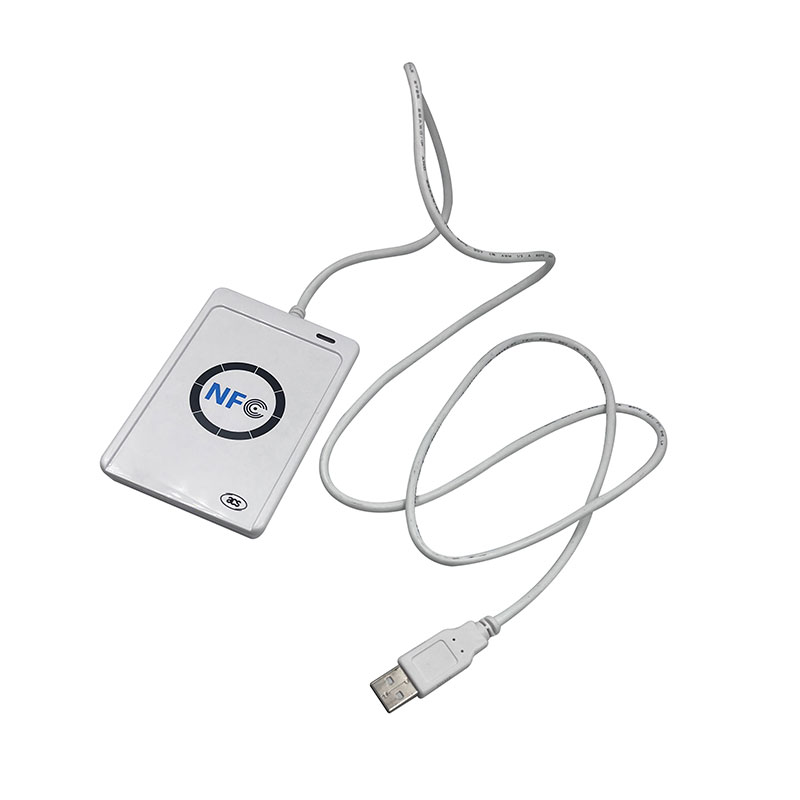

13.56 mhz USB NFC RFID Card Reader Writer ACR122 Contactless Smart Card Writer
13.56 mhz USB NFC RFID Card Reader Writer ACR122 Contactless Smart Card Writer
This nfc writer is 13.56 mhz USB NFC RFID Card Reader Writer ACR122 Contactless Smart Card Writer.we are wholesale nfc card writer manufacturer and supplier in China,we have been manufacturing nfc contactless writers for many years.our nfc reader has high quality,good price and we can provide you good service.we look forward to becoming your long-term partner in China.
Send Inquiry
Product Description
13.56 mhz USB NFC RFID Card Reader Writer ACR122 Contactless Smart Card Writer
1.Product Introduction
◉ACR122U NFC Reader is a non-contact smart card reader based on 13.56MHz(RFID) non -contact technology.it complies with ISO/IEC18092 near field Communication (NFC)standard,support MF cards,ISO14443A&B cards,and all full NFC tags.
◉ACR122U NFC Reader is ideal for personal identification and online micro-payment transactions.it can be used in a wide range of applications such as access control,electronic payments,e-ticketing(major events and public transport),toll collection and network verification,etc.
2.Product Description
|
Dimension |
98*65*12.8mm (L*W*H) |
|
Housing |
ABS |
|
Interfacec |
USB full speed |
|
Operating Distance |
Up to 50mm (depends on the tag type) |
|
Supply Voltage |
5V DC |
|
Supply Current |
200mA (Operating); 50mA (standby); 100mA (normal) |
|
Operating Temperature |
0-50 degree |
|
Operating frequency |
13.56mhz |
|
Smart Card interface support |
ISO 1443A&B,MF,Felica,NFC (ISO/IEC18092) tags |
|
Application |
E-Government,Banking&Payment,Network Security,Access Control,Transportation |
|
Support support |
Windows 98,Windows 2000,XP,Vista 7,Windows server 2003,server 2008,server 2008 R2,Windows CE,MAC,Linux Android |
3.Method of installation and use
a.Connect with computer through USB interface directly.when the buzzer sounded,reader into the self-inspection.and the same time,LED turn into red means standby.
b.Open nfccard reader&writer software,puttag on the top of reader,the software will outputa data(card number)of thetag. when reading the tag, LED light change from red to green.
Hot Tags: 13.56 mhz USB NFC RFID Card Reader Writer ACR122 Contactless Smart Card Writer, Wholesale, Manufacturers, Free Samples, Low MOQ, Cheap Price, New Technical, Durable, Newest, Eco-friendly, Low Price
