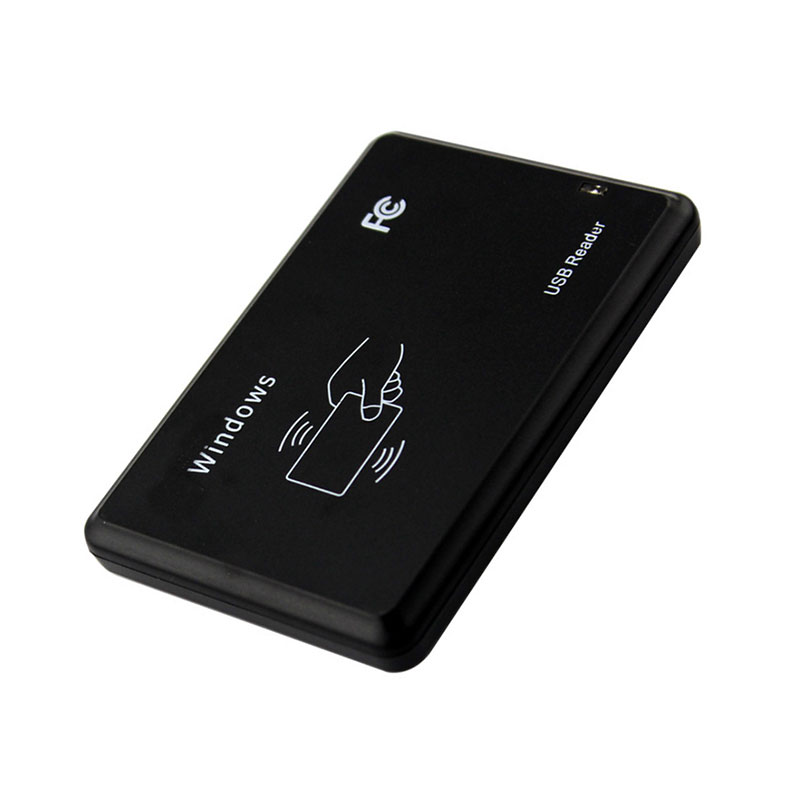

13.56Mhz Smart Card Scanner USB Control Contactless NFC Card Reader
1.Product Introduction
◉NFC is a short-range wireless communication technology,which belongs to a kind of wireless communication technology.NFC integrates the functions of RFID card reader and smart card.it can be carried out between mobile devices,consumer electronic products,PCs and control only tools.
◉NFC provides a simple and touch solution with simple and fast operation.it is integrated by radio frequency identification (RFID) and interconnection technology.on the chip,combined with the functions of inductive card reader,inductive card and point-to-point,it can identify and exchange data with compatible equipment in a short distance.
2.Product Description
Item |
Parameters |
Frequency |
13.56mhz |
Support cards |
(S50/S70/Ntag203/Ntag213,Ntag215,Ntag216 etc.14443A protocols cards) |
Output format |
10 digit dec(Defoult output format) (Allow user to customize the output format) |
Size |
104mm×68mm×10mm |
Colour |
Black |
Interface |
USB |
Power Supply |
DC5V |
Operating Distance |
0mm-100mm(related to the card or the environment) |
Service Temperature |
-10℃ ~ +70℃ |
Store Temperature |
-20℃ ~ +80℃ |
Working humidity |
<90% |
Read time |
<200ms |
Read interval |
<0.5S |
Cable length |
1400mm |
Material of reader |
ABS |
Operating System |
Win XP\Win CE\Win 7\Win 10\LIUNX\Vista\Android |
Indicators |
Double Color LED (Red & Green) and Buzzer (“Red” means standby,“Green” means reader success) |
3.Method of installation and use
a.Connect with computer through USB interface directly.when the buzzer sounded,reader into the self-inspection.and the same time,LED turn into red means standby.
b.Openthe output of computer software,such asNotepad\a word document or Excel sheets.
c.The mouse in Notepad or WORD document clicking.
d.Puttag on the top of reader,the software will outputa data(card number)of thetag. when reading the tag, LED light change from red to green.
4.Precautions
Do not install the reader on the magnetic objects and metal objects,they will seriously affect the RF signal.If after reading, the tag is still in the induction zone,the RF reader will not send data and without any hints.
